DA Series Standard Vertical Injection Molding Machines

DA Series combines standard vertical clamping with vertical injection across fixed platen, slide table, rotary table, and customized configurations.

It is the baseline platform for many vertical molding projects, giving your team a clear way to compare table configuration, model range, and workflow fit.

DA Series Platform

A standard starting point for vertical injection molding

DA Series uses standard vertical clamping and vertical injection. It is often the first platform to review when a project can use fixed platen, slide table, rotary table, or customized table configurations across the available model range.

  • Broad tonnage range 15T-800T across 46 models in 7 configuration categories
  • All table configurations Fixed, slide, rotary, right-angle, and specialized setups
  • Standard vertical structure Proven tie-bar clamping with vertical injection for reliable, stable molding
  • Widest application coverage Insert, overmolding, thermoset, LSR, footwear, brush, and industrial parts
DA Series standard vertical injection molding machine with vertical clamping and vertical injection

Key Structure

Standard vertical clamping with vertical injection

DA Series machines use a conventional tie-bar structure where the clamping unit moves vertically. The mold opens and closes along the vertical axis, and the injection unit injects material vertically into the mold. This straightforward design provides stable, repeatable clamping and is the industry workhorse for vertical injection molding.

Clamping
Vertical clamping with tie-bars for stable mold alignment
Injection
Vertical injection direction - material enters from above the mold
Tonnage
15T-800T across 46 models for applications of every scale

Why this structure matters

  • - Insert molding: Gravity helps hold inserts in place before clamping - the vertical layout keeps components positioned naturally during mold close.
  • - Overmolding: Pre-placed substrates stay stable on the lower mold half while the upper half closes vertically.
  • - Thermoset & BMC: Vertical injection supports controlled material feeding for heat-sensitive and fiber-filled compounds.
  • - Multi-cavity molds: Even clamping distribution across the platen surface for consistent part quality.

Configurations & Models

35 Models | 4 Table Types

Choose your table configuration,
then find the right model.

Each configuration is designed around how inserts are loaded and how loading interacts with the molding cycle. Scroll through to compare specifications across all four table types. Full 25-parameter data sheets are available on request.

Fixed platen vertical injection molding machine

Table Configuration

Standard - Fixed Platen

10 models | DA-150 - DA-3000

The lower platen stays fixed with one mold position and stable, repeatable clamping. Works well when the table does not need to move during loading. Suitable for simple insert placement and standard molding processes.

Single slide table vertical injection molding machine

Table Configuration

Single Slide Table

9 models | DA-150S - DA-2100S

One sliding lower platen moves out for insert loading, then slides back under the clamping unit. Improves operator access to the mold area. Often reviewed for manual insert loading and small-to-medium batch production where loading and molding alternate.

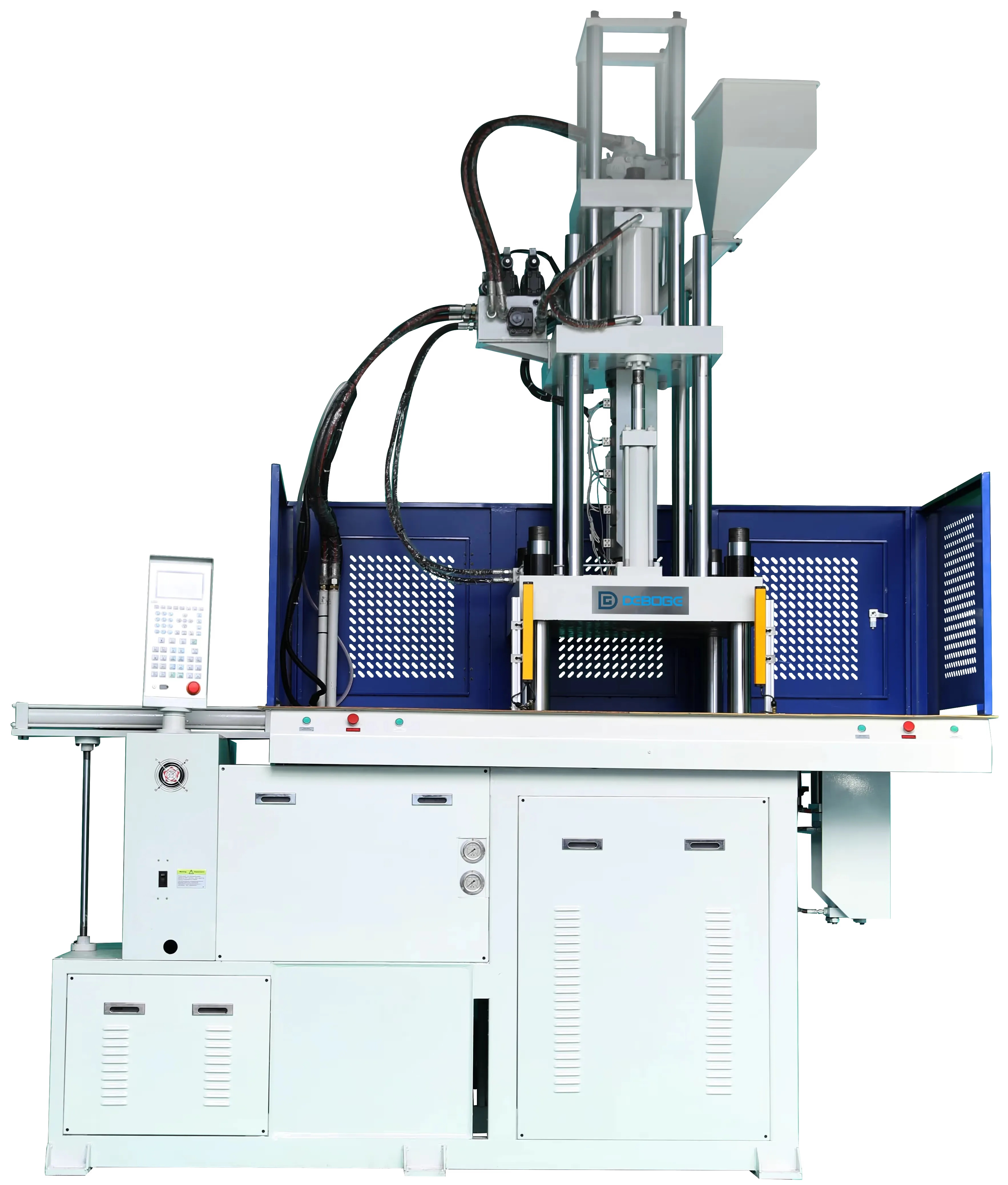

Double slide table vertical injection molding machine

Table Configuration

Double Slide Table

8 models | DA-150DS - DA-1600DS

Two alternating lower platens. While one mold is under clamp for injection, the other is outside for part removal and insert loading. Higher manual loading efficiency than single-slide operation for workflows that benefit from overlapping loading and molding.

Rotary table vertical injection molding machine

Table Configuration

Rotary Table

8 models | DA-300R - DA-2100R

A rotating table with multiple stations where insert loading and molding happen in parallel. Enables a more continuous production rhythm. Commonly selected for insert molding, overmolding, electronics, medical, and automotive applications.

DA Series Model Specifications

35 models
Model Table Config Clamp Force (kN) Screw Diameter (mm) Shot Weight (g) Dimensions (m)
DA-150 Standard 150 22 / 25 42 / 55 1.3 x 0.7 x 2.2
DA-300 Standard 300 25 / 28 / 32 74 / 92 / 117 1.7 x 0.9 x 2.4
DA-400 Standard 400 28 / 32 / 35 103 / 134 / 160 1.7 x 1.0 x 2.3
DA-600 Standard 600 32 / 35 / 40 134 / 160 / 210 1.8 x 1.1 x 2.4
DA-800 Standard 800 36 / 40 / 45 184 / 223 / 246 1.8 x 1.1 x 3.1
DA-1000 Standard 1,000 36 194 2.1 x 1.3 x 3.4
DA-1200 Standard 1,200 45 / 50 334 / 411 2.2 x 1.4 x 3.6
DA-1600 Standard 1,600 50 / 55 493 / 598 2.3 x 1.8 x 4.0
DA-2100 Standard 2,100 55 / 60 648 / 771 3.0 x 1.9 x 4.3
DA-3000 Standard 3,000 55 / 60 648 / 771 3.8 x 2.4 x 5.1
DA-150S Single Slide 150 22 / 25 42 / 55 1.4 x 0.9 x 2.3
DA-300S Single Slide 300 25 / 28 / 32 74 / 92 / 117 1.8 x 0.9 x 2.5
DA-400S Single Slide 400 28 / 32 / 35 103 / 134 / 160 1.9 x 1.0 x 2.3
DA-600S Single Slide 600 32 / 35 / 40 134 / 160 / 210 2.1 x 1.1 x 2.4
DA-800S Single Slide 800 36 / 40 / 45 184 / 223 / 246 2.2 x 1.1 x 3.1
DA-1000S Single Slide 1,000 36 / 42 / 46 194 / 261 / 314 2.4 x 1.3 x 3.4
DA-1200S Single Slide 1,200 45 / 50 334 / 411 2.7 x 1.4 x 3.7
DA-1600S Single Slide 1,600 50 / 55 493 / 598 3.1 x 1.5 x 4.0
DA-2100S Single Slide 2,100 55 / 60 648 / 771 3.0 x 1.9 x 4.3
DA-150DS Double Slide 150 22 / 25 42 / 55 1.3 x 1.4 x 2.3
DA-300DS Double Slide 300 25 / 28 / 32 74 / 92 / 117 1.8 x 1.1 x 2.5
DA-400DS Double Slide 400 28 / 32 / 35 103 / 134 / 160 1.9 x 1.1 x 2.3
DA-600DS Double Slide 600 32 / 35 / 40 134 / 160 / 210 2.1 x 1.2 x 2.3
DA-800DS Double Slide 800 36 / 40 / 45 184 / 223 / 246 2.3 x 1.5 x 3.1
DA-1000DS Double Slide 1,000 36 / 42 / 46 194 / 261 / 314 2.4 x 1.5 x 3.4
DA-1200DS Double Slide 1,200 45 / 50 334 / 411 2.8 x 1.4 x 3.7
DA-1600DS Double Slide 1,600 50 / 55 493 / 598 3.4 x 1.6 x 4.0
DA-300R Rotary 300 25 / 28 / 32 79 / 99 / 128 1.9 x 1.2 x 2.1
DA-400R Rotary 400 28 / 32 / 35 103 / 134 / 160 2.3 x 1.3 x 2.4
DA-600R Rotary 600 32 / 35 / 40 134 / 160 / 210 2.3 x 1.4 x 2.4
DA-800R Rotary 800 36 / 40 / 45 184 / 223 / 246 2.5 x 1.6 x 3.2
DA-1000R Rotary 1,000 36 / 42 / 46 194 / 261 / 314 2.6 x 1.6 x 3.5
DA-1200R Rotary 1,200 45 / 50 334 / 411 2.7 x 1.7 x 3.7
DA-1600R Rotary 1,600 50 / 55 493 / 598 2.9 x 1.9 x 4.1
DA-2100R Rotary 2,100 55 648 3.0 x 1.9 x 4.3

Showing 5 key specifications for quick comparison. Full 25-parameter technical data sheets are available on request - share your application details to receive a complete specification package.

Additional specialized configurations

Right-angle Slide: DA-300LS - DA-1200LS (6 models) Multi-color: DA-1600-2C / DA-1600-3C (2 models) Combined (tandem): DA-800-2C-LT / DA-2400-2C-LT / DA-2400-LT (3 models)

Right-angle slide, multi-color, and combined tandem configurations are available for specialized projects. Share your requirements for detailed specifications and feasibility assessment.

Typical Applications

DA Series fits many standard vertical molding discussions

From insert molding and overmolding to thermoset, LSR, footwear, and industrial parts, DA Series gives customers a practical starting point before comparing table configuration, mold access, and model range.

View All Applications
Insert Molding Overmolding Metal Insert Molding Thermoset Molding LSR / Silicone Automotive Electronics & Electrical Medical Components Footwear Brush Molding Filters Molding

Related Machine Information

DA-150 Specification Sheet Download the DA-150 PDF specification sheet for preliminary model review. Tie-bar-less Vertical Clamping Machines (DC Series) Open working area for cable connectors, power plugs, and small insert applications. Vertical Clamping Horizontal Injection Machines (DK Series) Horizontal injection with vertical clamping for larger insert and high-tonnage applications. Machine Selection Guide Step-by-step guidance on choosing the right vertical injection molding machine.

Frequently Asked Questions About DA Series

What types of products are commonly reviewed for DA Series machines?
DA Series machines are commonly reviewed for insert molding, overmolding, thermoset and BMC molding, LSR and silicone molding, footwear components, brush molding, seals, and general industrial parts. The standard vertical clamping and vertical injection structure makes DA a practical starting point for many standard vertical injection molding applications.
Which table configurations does DA Series support?
DA Series supports all four main table configurations: fixed platen for stable single-station molding, single slide table for manual insert loading, double slide table for alternating loading-and-molding workflows, and rotary table for continuous production with parallel loading and molding. Right-angle slide, multi-color, and combined tandem configurations are also available for specialized projects.
How does DA Series differ from DC and DK Series?
DA Series uses a standard vertical clamping structure with tie-bars and vertical injection - the most common configuration for general vertical molding. DC Series removes the tie-bars (tie-bar-less vertical clamping) to create an open working area for cable connectors, power plugs, and small insert applications. DK Series keeps the tie-bar structure but uses horizontal injection, making it suitable for larger insert molding, metal inserts, and higher-tonnage industrial parts.
How do I determine the right DA Series model and tonnage for my application?
Model selection depends on mold dimensions, tie-bar spacing, required clamp force, projected area, material behavior, shot weight, and insert loading workflow. Send product drawings, material information, mold information, and production targets so the engineering team can review the DA Series model and table configuration path.
Are DA Series specifications customizable?
Yes. Beyond the standard specification ranges shown in the tables, the engineering team can discuss adjustments to screw diameter, injection unit configuration, platen dimensions, table or rotary size, control options, and other parameters after reviewing your specific application requirements.
