Insert Molding

Metal or plastic inserts are placed into the mold before injection - vertical clamping keeps them in position by gravity, producing a single integrated component without secondary assembly.

DA and DC Series vertical machines can be reviewed for insert molding. Rotary, slide, or fixed platen configuration depends on insert type, loading method, mold design, and production volume.

Application Overview

What is insert molding and why use a vertical machine?

The process

An operator places inserts into the lower mold half. The vertical clamp closes, plastic is injected around the insert, and after cooling the finished part is ejected - ready for the next cycle.

This eliminates secondary assembly: no press-fitting, staking, or adhesive bonding. The result is a single component with strong mechanical bonding between insert and plastic.

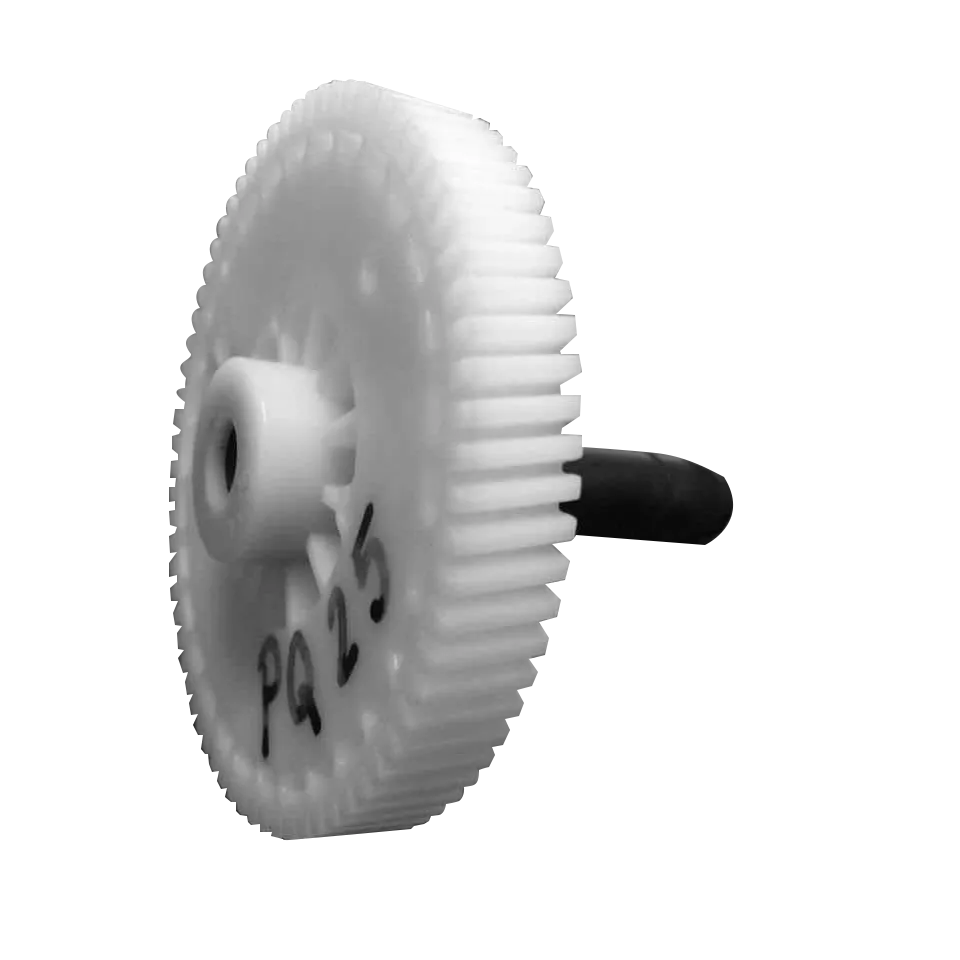

Gear with metal insert - insert-molded component

Why vertical clamping matters

In a horizontal machine, inserts can shift when the mold closes - gravity works against retention. A vertical clamp closes from above, holding inserts in place throughout the sequence. This matters for:

Multi-pin connectors where each pin must stay in its cavity
Threaded inserts that must remain perpendicular to the mold surface
Large or heavy metal inserts that would require complex retention mechanisms in a horizontal mold
Applications where the operator manually loads inserts and benefits from an open, accessible mold area

Common Challenges

Production challenges in insert molding

The interaction between insert placement, mold closing, and injection parameters determines part quality and production efficiency.

Insert displacement during mold closing

A shifted insert means a scrapped part - or mold damage if it crashes into the cavity wall. Vertical clamping uses gravity to hold inserts in place. Rotary and slide tables let the operator confirm position before closing.

Manual loading efficiency

The mold area must be accessible for quick, natural loading motions. Tie-bar-less DC Series removes front tie-bars for open access. Rotary tables let the operator load at one station while another molds - overlapping labour time with cycle time.

Selecting the right machine configuration

From 30T for small connectors to 120T for industrial components - table type (fixed, slide, rotary) must match loading method and volume. Wrong choice means excess cycle time or unnecessary cost. Deboge helps evaluate your product, mold, and machine fit before quoting.

Configuration Review

Recommended machine configuration for insert molding

Starting points based on common patterns. Final selection depends on your product dimensions, insert type, mold design, material, and production volume.

Machine series

DA Series

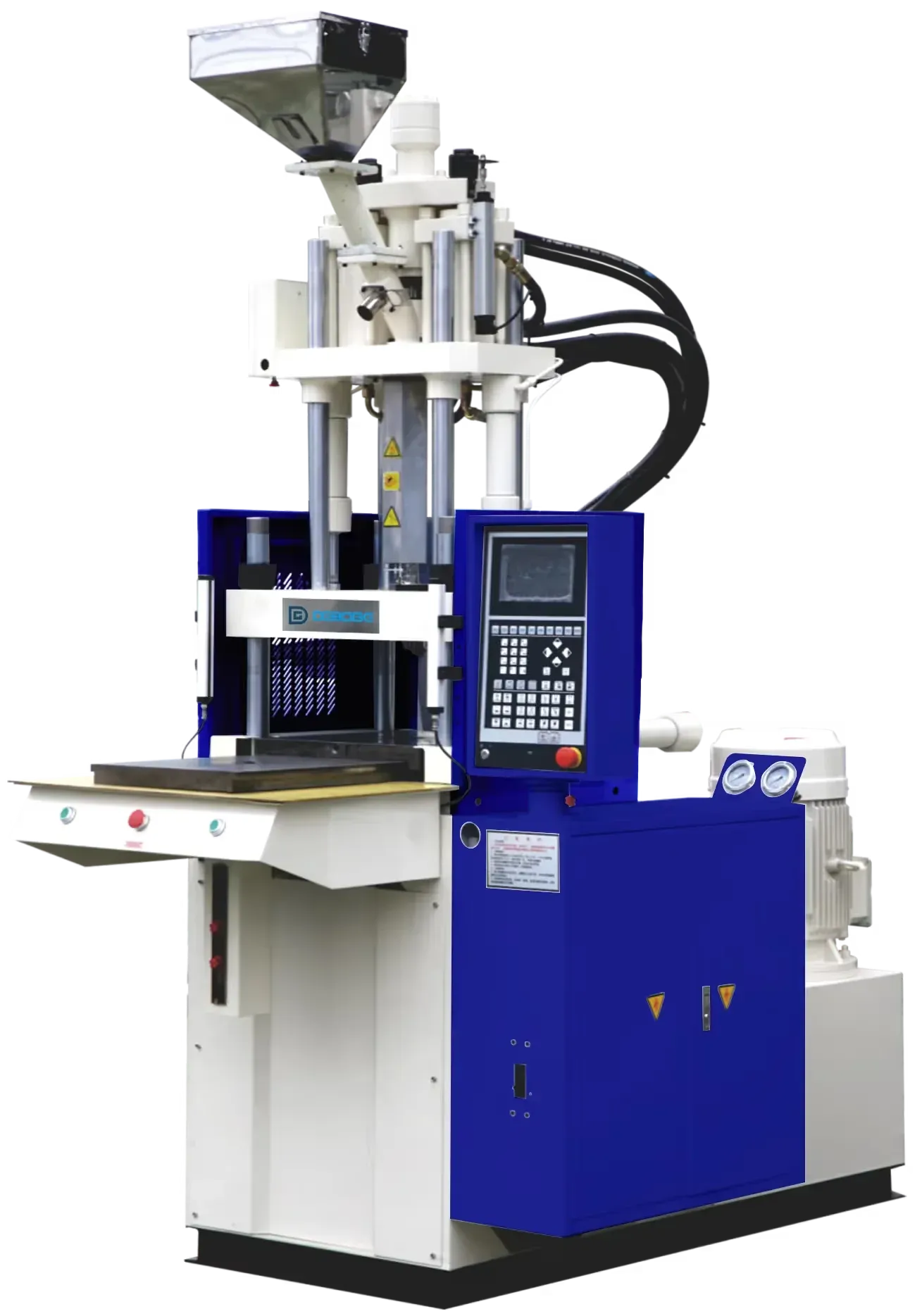

Standard vertical clamping + vertical injection. Broad coverage from small connectors to industrial components. Fixed, slide, or rotary table. 15T-800T.

View DA Series →

Machine series

DC Series

Tie-bar-less vertical clamping. No front tie-bars for open access when manually loading complex or multi-point inserts. 45T-120T.

View DC Series →

Table configuration

Rotary table

Multi-station rotating table. Operators can load at one station while molding runs at another, helping production volume planning.

View Rotary Table Machines →

Table configuration

Slide table

Lower mold slides out for loading outside the clamp area. Single or double slide can support larger or heavier insert placement.

View Slide Table Machines →

Machine size must be confirmed from project data - Review projected mold area, cavity count, material behavior, insert geometry, and mold structure before selecting tonnage.

Materials

Typical materials for insert molding

Selection depends on end-use environment, mechanical and electrical requirements, and bonding compatibility between insert and plastic.

PA66 (Nylon)

Common for connectors, terminal blocks, and mechanical parts. Good mechanical strength and heat resistance. Glass-fiber-reinforced grades available for higher stiffness.

PBT

Common for electrical and electronic connectors. Good dimensional stability and electrical insulation properties. Often used with metal terminal inserts.

PPS / LCP

High-temperature engineering thermoplastics for electronics applications requiring reflow-soldering resistance. Common in surface-mount connectors and automotive under-hood parts.

PP (Polypropylene)

General-purpose material for consumer goods, appliance parts, and industrial components. Good chemical resistance. Cost-effective for high-volume production.

POM (Acetal / Delrin)

Precision mechanical components - gears, bearings, sliding parts. Low friction, high dimensional stability, good wear resistance. Common with metal bushing or shaft inserts.

ABS / PC+ABS

Consumer electronics housings, appliance panels, general industrial enclosures. Good impact resistance and surface finish. Common with threaded brass insert molding.

Products

Typical insert molded products

From precision electronics to automotive - these product categories represent common insert molding applications on Deboge vertical machines.

Electronic connectors with metal pin inserts

Electronic connectors & terminals

Multi-pin connectors, terminal blocks, PCB headers with metal pin inserts.

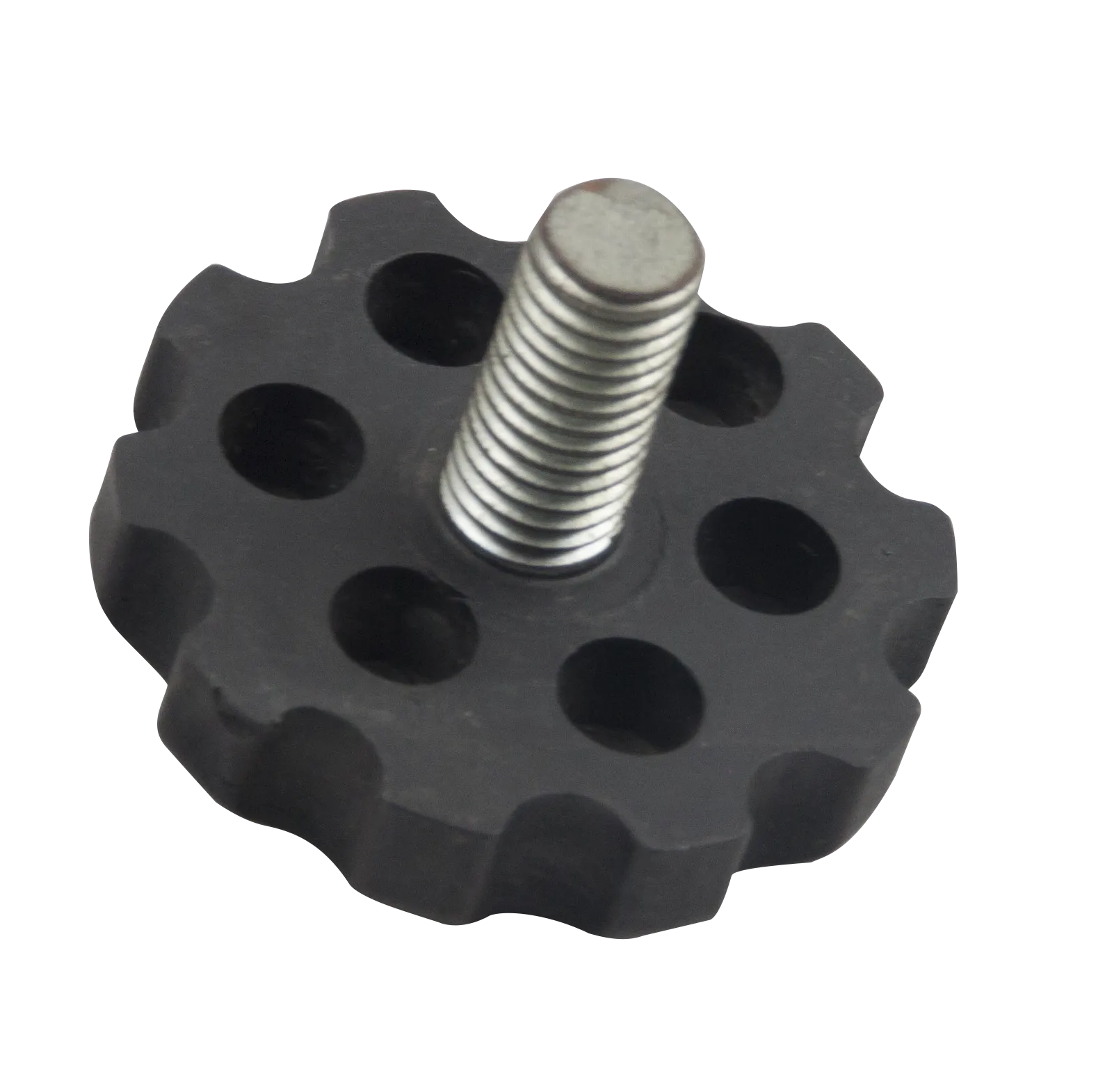

Screw insert molding - threaded metal insert in plastic component

Threaded insert components

Plastic housings with molded-in brass or steel threaded inserts for assembly fastening.

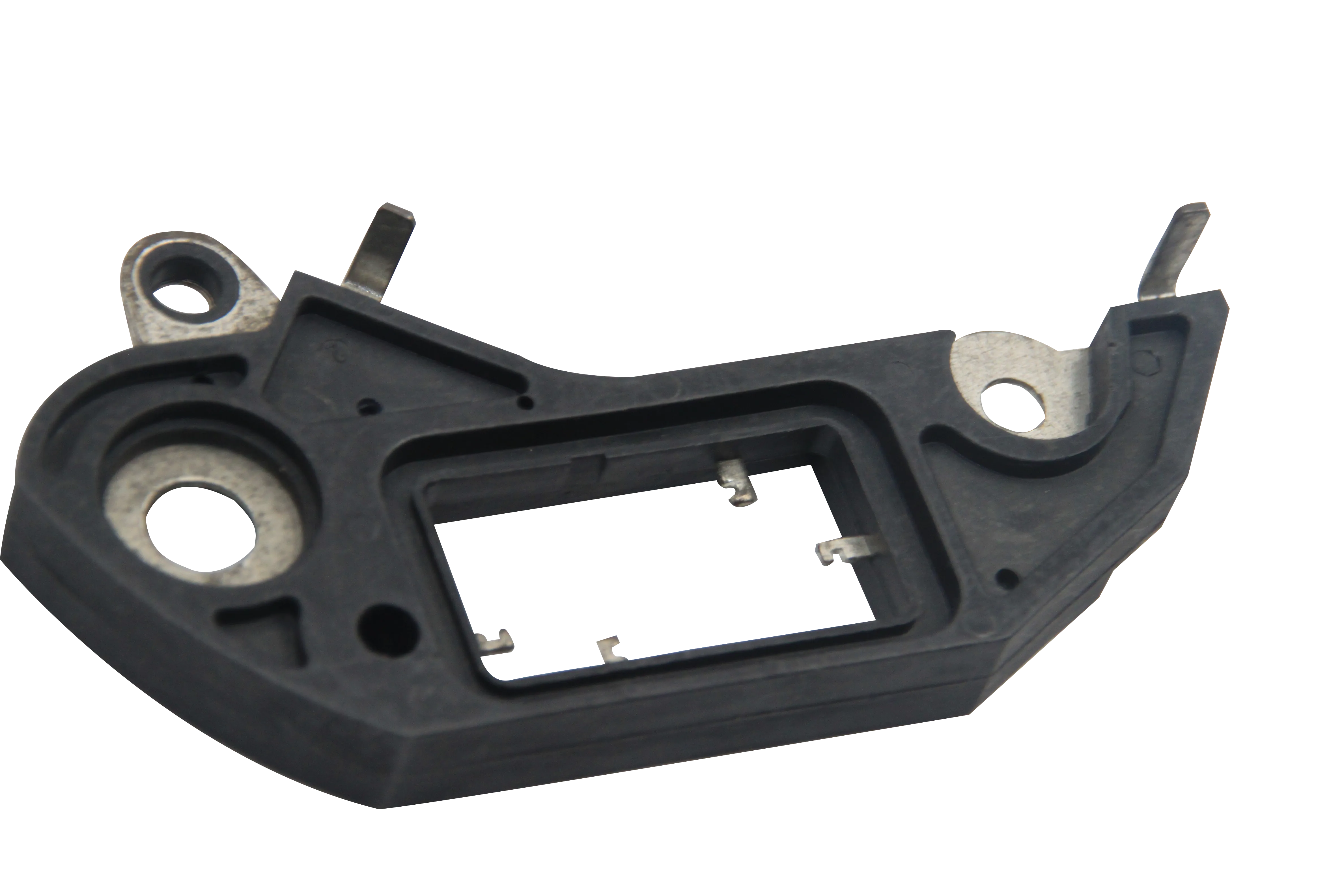

Metal insert-molded industrial component

Industrial components

Machine parts, bushings, bearing housings with metal structural inserts.

Dumbbell - metal core with plastic overmold

Consumer & appliance parts

Knobs with metal shaft inserts, handles, appliance housings, furniture hardware.

DA Series - Standard Vertical Injection Vertical clamping + vertical injection. Commonly reviewed for insert molding applications. DC Series - Tie-bar-less Vertical Clamping Open working area for manual insert loading, 45T-120T. Rotary Table Machines Multi-station configuration for efficient insert loading cycles. Slide Table Machines Single and double slide table configurations for accessible insert placement.

FAQ

Insert molding - frequently asked questions

Why is a vertical injection molding machine used for insert molding?

Vertical clamping holds inserts in place by gravity during mold closing - unlike horizontal machines where inserts can shift. The operator loads inserts into the lower mold, and the clamp closes from above without disturbing placement. Critical for connectors, threaded inserts, and multi-pin components where positioning determines quality.

Which table configuration is recommended for insert molding?

Rotary tables suit medium-to-high-volume work - one station loads while another molds, overlapping labour with cycle time. Slide tables move the lower mold out for easier loading, preferred when inserts are large or need careful placement. Fixed platen works for simple insert molding with direct loading.

How should machine size be reviewed for insert molding?

Tonnage should be reviewed from mold dimensions, projected area, cavity count, material, insert geometry, and loading workflow. Insert molding covers many product sizes, so the machine size should be confirmed from the actual project data.

Which machine series is commonly reviewed for insert molding?

DA Series is commonly reviewed for insert molding applications. DC Series is commonly considered when operators need open access for complex manual insert loading. The configuration direction depends on product size, insert type, material, mold design, and workflow.

What materials are commonly used in insert molding?

PA66 for connectors and mechanical parts. PBT for electrical components. PPS/LCP for high-temperature electronics. PP for general-purpose parts. POM for precision mechanical components. Selection depends on end-use environment, mechanical requirements, and insert-plastic bonding.

Can a machine be customized for a specific insert molding application?

Yes. For non-standard requirements - unusual insert loading, automation integration, or multi-shot molding - the engineering team can discuss a custom platform after reviewing your product details, insert layout, mold design, and production target.

How do I discuss machine configuration for insert molding?

Send your product details, insert type, material, mold dimensions, and production volume through the contact form. An applications engineer can review the project data and discuss machine series, table configuration, and machine-size direction.
